Question 1.

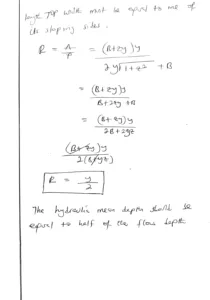

Show that for a trapezoidal channel of given area of flow, the condition of maximum flow requires that hydraulic mean depth is equal to one half the depth of flow.
Read more, Different Types Of Flow in Channels
(solved), A most efficient trapezoidal section is required to give a maximum discharge of 21.5 m3/s of water. The slope of the channel bottom is 1 in 2500. Taking C = 70 m1/2/s in Chezy’s equation, determine the dimensions of the channel. Also determine the value of Manning’s n, taking the value of velocity of flow as obtained for the channel by Chezy’s equation
(solved), A channel carries a discharge of 5 cumec with a flow depth 1 m. The side slopes are 1 to 1 and bed slope 1 in 3520. Find the bed width and the velocity. The values of Chezy’s C for this channel for different values of hydraulic radius R are as tabulated below
(solved), A channel is 2m wide at bottom; the length of each sloping side is 1.95 m; the width at water surface is 5.5 m the flow depth 1.2 m; and bed slope 1 in 5280. What is the discharge per minute? The values of Chezy’s C for this channel for different values of hydraulic radius R are as tabulated below.
