Question

A 10 m high retaining wall has been holding a soil with the following composition: G=2.65, e= 0.50, w=10%, and Ф=20 degrees. Determine the active thrust on the wall due to soil and water, the active thrust on the wall due to soil only, and the increase in force on the wall if the soil is fully saturated with rain water.

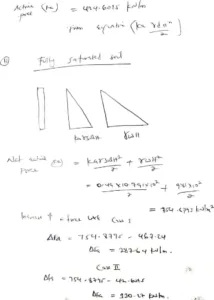

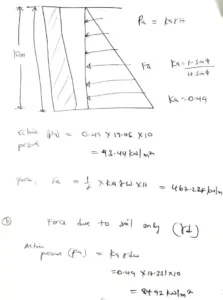

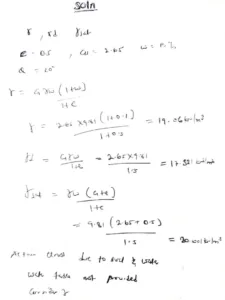

Solution
